Nothing Beats Solartuff in Clarity and Durability
SolarTuff® is the premium corrugated polycarbonate sheet with superior transparency and toughness, absolutely the perfect roofing and glazing solution to your architectural needs.
Engineered with the most advanced European technology and selectively the best grades of plastic resins, SolarTuff® comes in lightweight yet virtually unbreakable characteristic, qualifying itself to withstand severe weather condition and unpredictable climate changes.
On top of it all, easy installation, high design flexibility and various attractive colors make SolarTuff® the perfect roofing and glazing secret to express your unique design and architectural creativity and imagination.
Where Clarity is Second to None and Virtually Unbreakable
SolarTuff Solid® is solid flat polycarbonate sheet with the highest clarity and impact strength, produced using the finest resin grades and the most advanced European technology executed with over 30 years of industry experience.
Having perfect transparency just like glass, yet being virtually unbreakable, SolarTuff Solid® is the one stop glazing solution which will easily blend in harmony with your existing exteriors and interiors.
SolarTuff Solid® protects you and your loved ones from the harmful UV rays, giving such comfort while enjoying the natural sunlight.
When quality and style are your way of living, SolarTuff Solid® is your absolute choice.
Polycarbonate Roofing to Suit Your Lifestyle

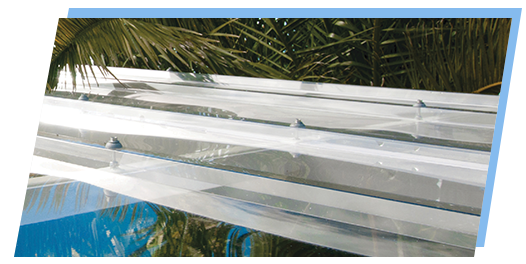

SolarTuff Custom Glaze is a translucent polycarbonate sheet that is strong, but lighter than glass. Equipped with a two-corrugation connection system on the left and right edges, installing SolarTuff Custom Glaze behind a vertical frame looks elegant like flat glass.
PROFILES
SOLARTUFF ROMA
SOLARTUFF GRECA

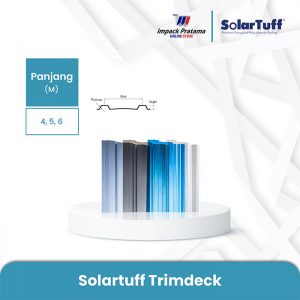

SOLARTUFF TRIMDECK
SOLARTUFF TRIMDECK 1000
SOLARTUFF SOLID PLAIN
SOLARTUFF SOLID EMBOSSED
SOLARTUFF CUSTOM GLAZE
AVAILABLE
COLOURS
The Perfect Color for Every Location
Whether the structure faces north, south, east or west, SolarTuff® has a color that offers you the right choice of heat and light transmissions for all your project needs.
The light and heat transmission is an important factor in choosing the right color for your location. If the area surrounding your structure is normally hot and sunny, has little shade or poor ventilation, we recommend you choose a color with a lower light and heat transmission value. On the other hand, if your location is shady or cold and requires maximum light and warmth, choose a color with a higher light and heat transmission value.
STANDARD SIZES
| Type | Thickness (mm) |
Width (mm) |
Effective Width (mm) |
Height (mm) |
Pitch (mm) |
Length/ Customized (m) |
|---|---|---|---|---|---|---|

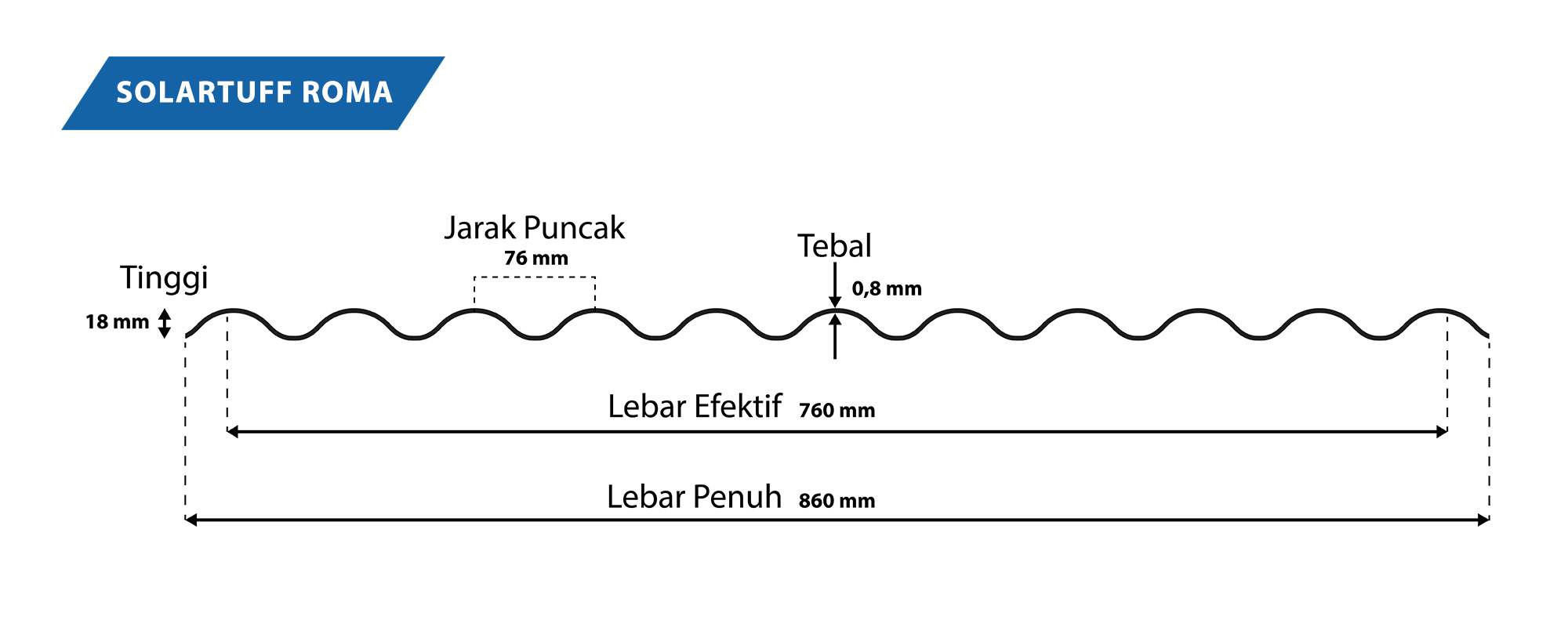

| SolarTuff Roma
|
0.8 mm | 860 | 760 | 18 | 76 | 1,8
2,4 3 3,6 4,2 6 |
| SolarTuff Greca
|
0.8 mm | 820 | 760 | 18 | 76 | |

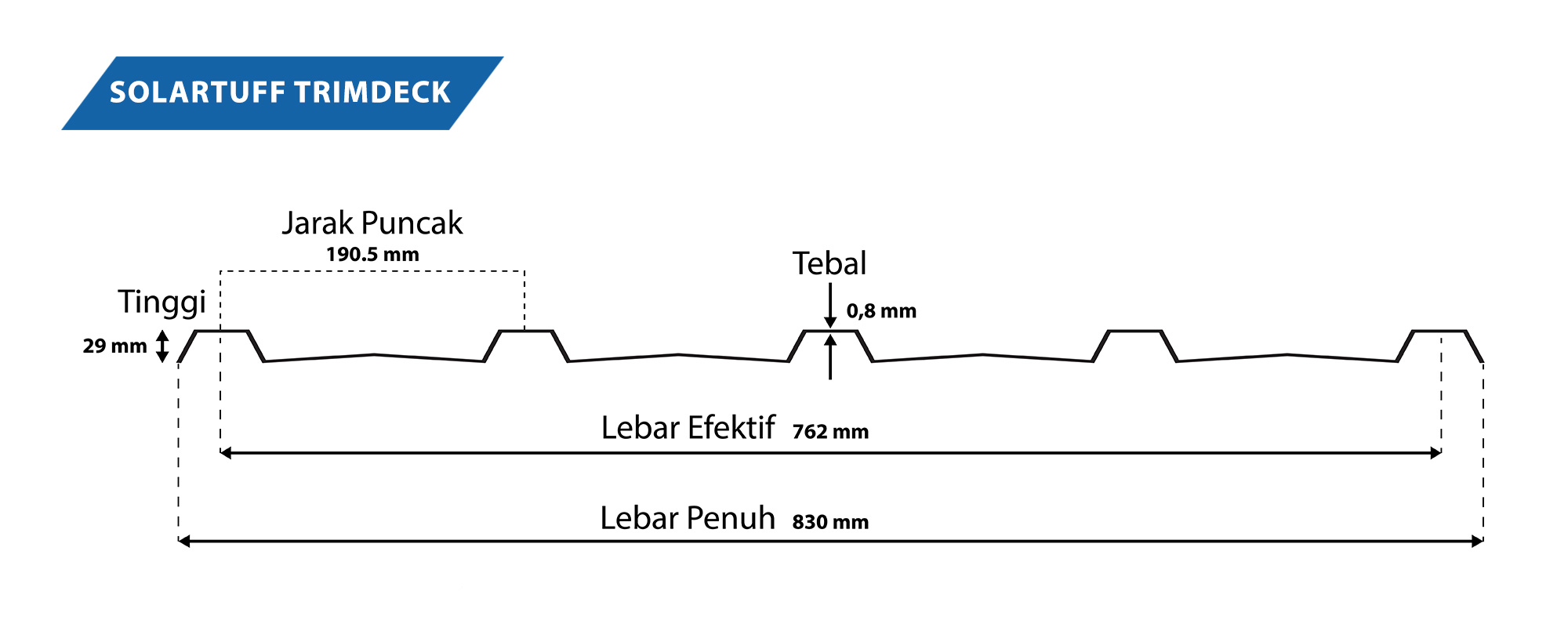

| SolarTuff Trimdeck
|
0.8 mm | 830 | 762 | 29 | 190.5 | 6 |
| SolarTuff Trimdeck 1000
|
0.8 mm | 1,075 | 1,000 | 30,6 | 250 | 4, 5, 6 |
| SolarTuff Solid Plain | 1.2 mm | 1,100 | 1,100 | – | – | 50 |
| SolarTuff Solid Plain & Embossed | 3 mm | 1,220 | 1,220 | – | – | 20 |
| SolarTuff Custom Glaze
|
2 mm | 670 | 610 | 34 | – | 6 |
*Customized length for export
**For 0.6 – 6mm thickness, please contact us
LIGHT & HEAT
TRANSMISSION
| Profile | Colours | Light Transmission | Heat Transmission |
|---|---|---|---|
| SolarTuff Corrugated (Roma, Greca, Trimdeck, Trimdeck 1000) |  Clear |
89% | 97% |
 Bronze |
28% | 89% | |
 Green |
43% | 91% | |
 Grey |
10% | 71% | |
 Blue |
22.5% | 88% | |
 Silver Millenium |
14% | 14% | |
 Opal |
21% | 42% | |
| SolarTuff Solid/Flat Plain | Clear |
86% | 90% |
| Bronze |
11% | 81% | |
| Grey |
3% | 63% | |
| SolarTuff Solid/Flat Embossed | Clear |
80% | 78% |
| Bronze |
14% | 70% | |
| Grey |
4% | 54% | |
| SolarTuff Custom Glaze | Clear |
90% | 100% |
| Bronze |
11% | 81% | |
| Grey |
30% | 63% |
*Above data applies for SolarTuff Solid 3 mm only
WARRANTY
SolarTuff® is warranted for a period of fifteen years against excessive loss of light transmission and/or surface yellowing on the UV protected surface.
The warranty applies to SolarTuff® installed and maintained according to the manufacturer’s recommendations and specifications. Full warranty details are available from any authorized SolarTuff®distributor. It is important to retain the original receipt as proof of purchase for any warranty claim.
HOW TO INSTALL SOLARTUFF
Please read and follow the installation’s instruction carefully before starting. For more detail information, please refer to SolarTuff installation guideline.

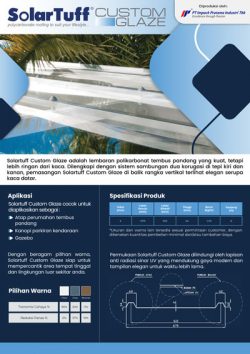

DOWNLOAD SOLARTUFF BROCHURE
Get complete information about the specifications and features of SolarTuff.
